86 173448944902024 Aluminum Block

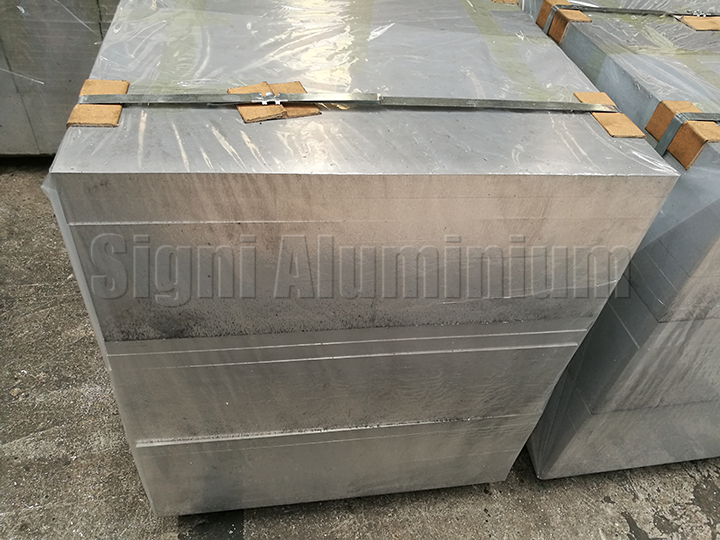

2024 Solid Square Rectangle Aluminium Block
2024 Aluminum Block for Billet, Mold, Vehicle Wheel, Propeller structure,Aircraft Frame, Trailer Wheel
2024 Solid Square Rectangle Aluminium Block is a typical hard aluminum alloy in Al Cu mg system. Its composition is reasonable and its comprehensive performance is good. 2024 Solid Square Rectangle Aluminium Block has the advantages of high strength and heat resistance, and can be used as a working part below 150 deg C. The temperature is higher than 125 C, and the strength of the alloy is higher than that of 7075 aluminum alloy. Under the condition of hot state, annealing and new quenching, the forming performance is good, and the heat treatment process is strict,so the heat treatment effect is obvious.
| Alloy | Temper | Thickness（mm） | Width（mm） | Length（mm） | Surface Treatment: | Shape: |
| 2024 Solid Square Rectangle Aluminium Block |
O、T3、T4、T6、T72、T81、T361、T351、T861、T3511、T8611 |
6-300 | 100-2600 | 500-16000 |
Mill Finish Anodized Finish. |
Square Rectangular |
| Remark:can made available in different dimensions as per the requirement of the clients. | ||||||
| Alloy | Chemical Component | |||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ni | Ti | others | Al | ||
| single | total | |||||||||||
| 2024 | 0.50 | 0.50 | 3.8-4.9 | 0.30-0.9 |
1.2- 1.8 |
0.10 | 0.25 | -- | 0.15 | 0.05 | 0.15 | Remainder |
Performance advantage
1, 2024 Solid Square Rectangle Aluminium Block has no oil, no aluminum surface waves, no scratches, no roller, uniform cutting edges and burr;
2, 2024 Solid Square Rectangle Aluminium Block has low density, high specific modulus, good thermal conductivity and electrical conductivity, good manufacturing process;
3, Signi aluminum production with ultra wide, super thick aluminum production line, the production of the test of the Solid Square Rectangle Aluminium Block, has good mechanical properties, strength in the processing of the stool, the density is small, can be used as light structural materials
4. The tensile strength of the 2024 Solid Square Rectangle Aluminium Block is 400-500MPa, and the heat resistance and fatigue resistance of the alloy are better than that of the alloy.
Application:
2024 Solid Square Rectangle Aluminium Block can be used for Propeller structure,aircraft frame, TRAILER WHEEL，etc.
