86 17344894490Aluminium Mold Block

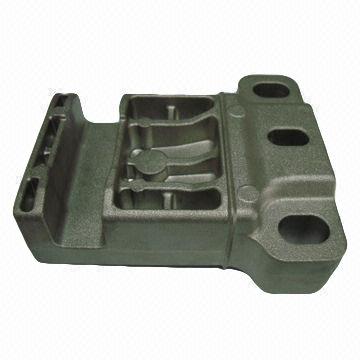

Aluminium Mold block
Aluminum Mould Block Supplier
Signialuminium specilizes in procesing Aluminium Mold block, we have the slitter line, slab cutting line, shear line. The equipments include sheet shear machine, plate sawing and cutting machine, tube and bar sawing machine and so on. We can slit, cut across, longitudinal cutting, sawing, shearing and coated with plastic. We can offer the exactest Aluminium Mold block which is the most economical and reasonable.
Aluminium Mold block, offered by us, are manufactured using high quality Aluminum,are made available in different dimensions as per the requirement of the clients. Owing to their excellent processing performance, good corrosion resistance, high toughness and deformation after processing, easy coating, good oxidation effect and other excellent features,etc,the Aluminium Mold block can be used in injection moulding, RIM, structural foam moulding, vacuum forming, blow moulding and rubber moulding,etc.
General Specification
| Alloy | Temper | Specification (mm) | ||
| Thickness | Width | Length | ||
| 5052,5083,5086,6061,2024,7075 | H111, H112, H116,T4, T6, T651 | 6~300mm | 100~2600 | 500~16000 |
| Remark: special specifications can be produced accordingly to your requirement. | ||||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Alu min | |||
| each | Total | |||||||||||||
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | - | 0.1 | - | 0.05 | 0.15 | |||
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | - | 0.25 | 0.15 | 0.05 | 0.15 | remainder | ||
| 5086 | 0.40 | 0.50 | 0.10 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | - | 0.25 | 0.15 | 0.05 | 0.15 | remainder | ||
| 6061 | 0.4~0.8 | 0.7 | 0.15~0.40 | 0.15 | 0.8~1.2 | 0.04~0.35 | - | 0.25 | 0.15 | 0.05 | 0.15 | remainder | ||
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.1 | - | 0.25 | 0.15 | 0.05 | 0.15 | remainder | ||
| 7075 | 0.40 | 0.50 | 1.2 ~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | - | 5.1~6.1 | 0.20 | 0.05 | 0.15 | remainder | ||
Physical property
| Alloy | Temper |
Specified Thickness mm |
Tensile strength Rm MPa |
Yield strength Rp 0.2 MPa |
Elongation min. |
Bend Radius |
Hardness | |||||
| over | Up to | Min. | Max. | Min. | Max. | A50mm | A | 180° | 90° | HBW | ||
| 5052 | O/H111 | 6 | 12.5 | 165 | 215 | 65 | - | 19 | - | - | 2.0t | 46 |
| 12.5 | 80.0 | 165 | 215 | 65 | - | - | 18 | - | - | 46 | ||
| H112 | 6 | 12.5 | 190 | - | 80 | - | 7 | - | - | - | 55 | |
| 12.5 | 40.0 | 170 | - | 70 | - | - | 10 | - | - | 47 | ||
| 40.0 | 80.0 | 170 | - | 70 | - | - | 14 | - | - | 47 | ||
| 5083 | 0/H111 | 6.3 | 12.5 | 270 | 345 | 115 | - | 16 | - | - | - | 75 |
| 12.5 | 50.0 | 270 | 345 | 115 | - | - | 15 | - | - | 75 | ||
| 50.0 | 80.0 | 270 | 345 | 115 | - | - | 14 | - | - | 73 | ||
| 80.0 | 120.0 | 260 | - | 110 | - | - | 12 | - | - | 70 | ||
| 120.0 | 200.0 | 255 | - | 105 | - | - | 12 | - | - | 69 | ||
| H112 | 6.0 | 12.5 | 275 | - | 125 | - | 12 | - | - | - | 75 | |
| 12.5 | 40.0 | 275 | - | 125 | - | - | 10 | - | - | 75 | ||
| 40.0 | 80.0 | 270 | - | 115 | - | - | 10 | - | - | 73 | ||
| 80.0 | 120.0 | 260 | - | 110 | - | - | 10 | - | - | 73 | ||
| H116 | 6.0 | 12.5 | 305 | - | 215 | - | 12 | - | - | 4.0t | 89 | |
| 12.5 | 40.0 | 305 | - | 215 | - | - | 10 | - | - | 89 | ||
| 40.0 | 80.0 | 285 | - | 200 | - | - | 10 | - | - | 83 | ||
| 5086 | 0/H111 | 6.3 | 12.5 | 240 | 310 | 100 | - | 17 | - | - | 2.5t | 65 |
| 12.5 | 150.0 | 240 | 310 | 100 | - | - | 16 | - | - | 65 | ||
| H112 | 6.0 | 12.5 | 250 | - | 105 | - | 8 | - | - | - | 69 | |
| 12.5 | 40.0 | 240 | - | 105 | - | - | 9 | - | - | 65 | ||
| 40.0 | 80.0 | 240 | - | 100 | - | - | 12 | - | - | 65 | ||
| H116 | 6.0 | 12.5 | 275 | - | 195 | - | 10 | - | - | 3.5t | 81 | |
| 12.5 | 50.0 | 275 | - | 195 | - | - | 9 | - | - | 81 | ||
| 2024 | O | 6.0 | 9.0 | - | 220 | - | 140 | 13 | - | - | 2.5t | 55 |
| 9.0 | 12.5 | - | 220 | - | 140 | 13 | - | - | 4.0t | 55 | ||
| 12.5 | 25.0 | - | 220 | - | - | - | 11 | - | - | 55 | ||
| T3/T351 | 6.0 | 12.5 | 440 | - | 290 | - | 13 | - | - | - | 124 | |
| 12.5 | 40.0 | 430 | - | 290 | - | - | 11 | - | - | 122 | ||
| 40.0 | 80.0 | 420 | - | 290 | - | - | 8 | - | - | 120 | ||
| 80.0 | 100.0 | 400 | - | 285 | - | - | 7 | - | - | 115 | ||
| 100.0 | 120.0 | 380 | - | 270 | - | - | 5 | - | - | 110 | ||
| 120.0 | 150.0 | 360 | - | 250 | - | - | 5 | - | - | 104 | ||
| 7075 | O | 6.0 | 12.5 | - | 275 | - | 145 | 10 | - | - | 4.0t | 55 |
| 12.5 | 75.0 | - | 275 | - | - | 9 | - | - | - | 55 | ||
| T6 T651 T62 | 6.0 | 12.5 | 540 | - | - 460 | - | 8 | - | - | - | 160 | |
| 12.5 | 25.0 | 540 | - | 470 | - | - | 6 | - | - | 161 | ||
| 25.0 | 50.0 | 530 | - | 460 | - | - | 5 | - | - | 158 | ||
| 50.0 | 60.0 | 525 | - | 440 | - | - | 4 | - | - | 155 | ||
| 60.0 | 80.0 | 495 | - | 420 | - | - | 4 | - | - | 147 | ||
| 80.0 | 90.0 | 490 | - | 390 | - | - | 4 | - | - | 144 | ||
| 90.0 | 100.0 | 460 | - | 360 | - | - | 3 | - | - | 135 | ||
| 100.0 | 120.0 | 410 | - | 300 | - | - | 2 | - | - | 119 | ||
| 120.0 | 150.0 | 360 | - | 260 | - | - | 2 | - | - | 104 | ||
| T652 | 150 | 200 | 360 | - | 260 | - | - | 2 | - | - | - | |
| 200 | 300 | 360 | - | 260 | - | - | 2 | - | - | - | ||
Applications：
*Foam Moulding
*Vacuum Forming
*Blow Moulding
*RIM and Structural Foam Moulding
*Rubber Moulding
*Injection Moulding
